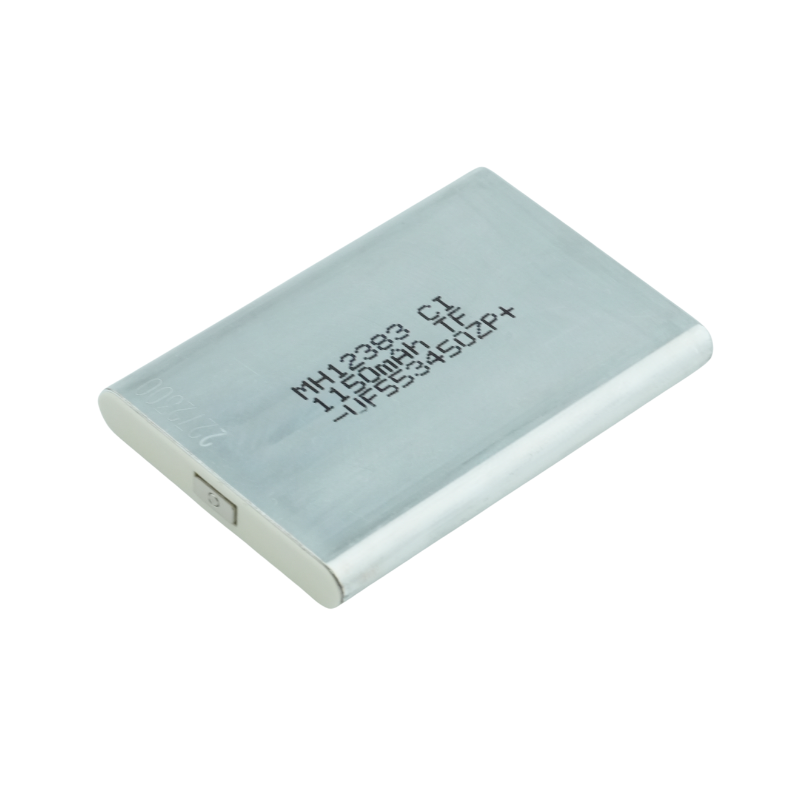

1.Quality Prismatic Lithium-ion Rechargeable Battery
2.Brand: Sanyo
3.Size: 553450
4.Model: UF553450ZP
5.Nominal Voltage: 3.7V
6.Nominal Capacity （typ.）: 1200mAh
2.Brand: Sanyo
3.Size: 553450
4.Model: UF553450ZP
5.Nominal Voltage: 3.7V
6.Nominal Capacity （typ.）: 1200mAh
1. Nominal Capacity (min.): 1150mAh
2. Nominal Capacity (typ.): 1200mAh
3. Nominal Voltage: 3.7V
4. Discharging End Voltage: 2.5V
5. Charging Voltage: 4.2V
6. Charging Method: CC-CV
7. Std. Charging Current: 1150mA
6. Charging Method: CC-CV
7. Std. Charging Current: 1150mA
8. Std. Charging Time: 2.5 hours
9. Approx. Weight (max.): 22.3g
10. Thickness*Width*Height (without tube): 5.55*33.85*49.8mm
11. Temperature
charging: 0 to +40℃
Discharge：-20℃ to +60℃
Storage: -20℃ to +50℃
charging: 0 to +40℃
Discharge：-20℃ to +60℃
Storage: -20℃ to +50℃
