Prodcuts > High Capacity Bare Cells > LiFePO4-IFR

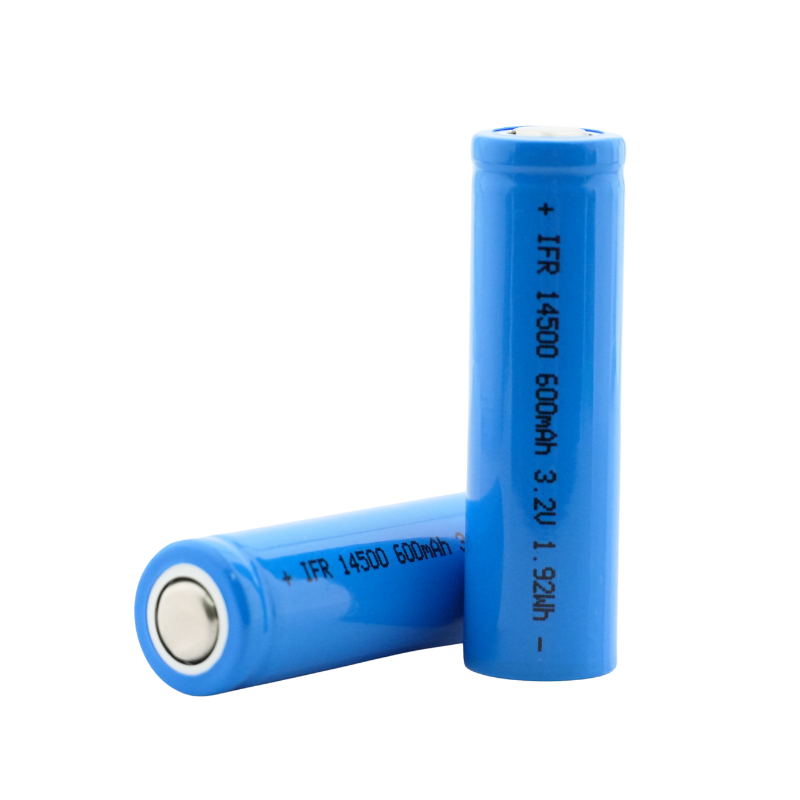

1.Quality Rechargeable LiFePO4 Cell IFR14500
2.Model: IFR14500
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 600mAh
5.Made in China
2.Model: IFR14500
3.Nominal Voltage: 3.2V
4.Nominal Capacity: 600mAh
5.Made in China
1. Type: Cylindrical LFP rechargeable lithium ion battery
2. Dimension
Φ=14.2±0.2mm
H=50±0.5mm
3. Nominal Capacity: 600mAh
4. Minimum Capacity: 590mAh
4. Minimum Capacity: 590mAh
4. Nominal Voltage: 3.2V
5. Limited Charging Voltage: 3.65V
5. Limited Charging Voltage: 3.65V
6. Recommended Charging Conditions: 0.2C CC to 3.65V, then CV to ≤0.01C
7. Standard Charging Current: 120mAh
8. Max. Charging Current: 600mAh
9. Standard Discharge Current: 120mAh
7. Standard Charging Current: 120mAh
8. Max. Charging Current: 600mAh
9. Standard Discharge Current: 120mAh
10. Max. Discharge Current: 600mA
11. Cycle Life: 1800cycles [Capacity≥80%]
11. Cycle Life: 1800cycles [Capacity≥80%]
12. Weight: Approximately 18g
13. Internal Resistance: ≤80mΩ
14. Temperature
Charge: 0~+60°C
Discharge: -20~+60°C
Storage: 0~+35°C (1 month)
0~+30°C (3 months)
0~+25°C (1 year)
0~+30°C (3 months)
0~+25°C (1 year)
