Prodcuts > Temperature Protection Protected Battery Series

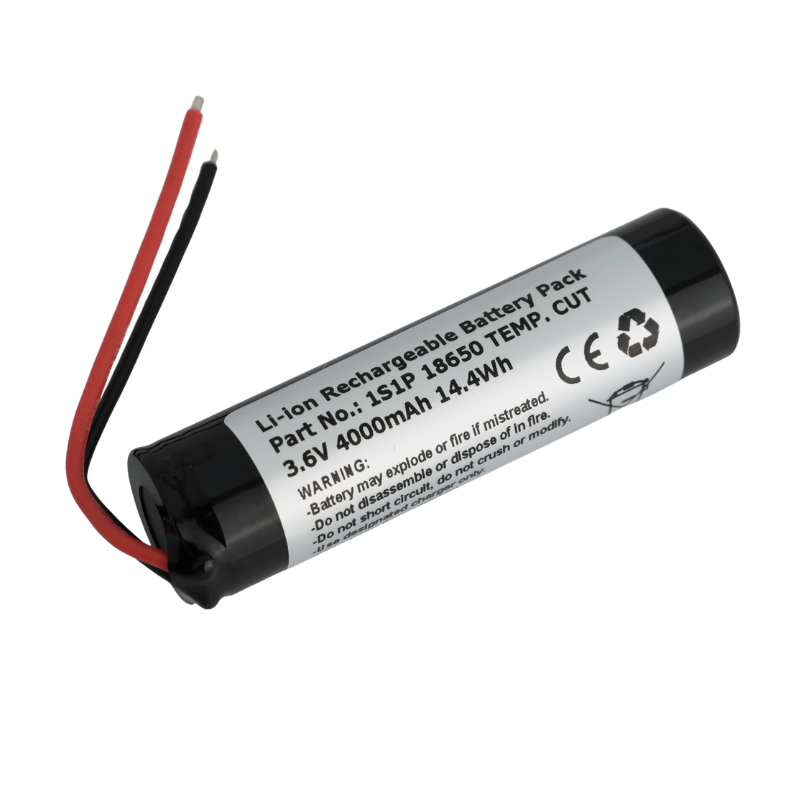

* Protected 1S1P 18650 3.6V 3850mAh Li-ion NCM Battery with Temp. Protection
* Brand: Keeppower
* Part No.: 1S1P 18650-400T
* Maximum Size:（D）19.1*（L）69.2mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 4000mAh
* Weight: 51g
* Brand: Keeppower
* Part No.: 1S1P 18650-400T
* Maximum Size:（D）19.1*（L）69.2mm
* Nominal Voltage: 3.6V
* Nominal Capacity: 4000mAh
* Weight: 51g
● Model No.: 1S1P 18650-400T
● Nominal Capacity: 4000mAh
● Minimum Capacity:3850mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Standard Charging/Discharging Current: 800mA
● Maximum Continuous Charging Current: 2000mA
● Maximum Continuous Discharging Current: 6A
● Minimum Capacity:3850mAh
● Nominal Voltage: 3.6V
● Charging Method: CC-CV
● Standard Charging/Discharging Current: 800mA
● Maximum Continuous Charging Current: 2000mA
● Maximum Continuous Discharging Current: 6A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles
● Weight: 51g
● Maximum Dimensions: （D）19.1*（L）69.2mm
● Temperature Protection:
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles
● Weight: 51g
● Maximum Dimensions: （D）19.1*（L）69.2mm
● Temperature Protection:
Charge Over-Temp. Protection: +45 ± 5 ℃
Charge Low-Temp. Protection: +0 ± 5 ℃
Discharge Over-Temp. Protection: 60 ± 5 ℃
Discharge Low-Temp. Protection: -20 ± 5 °C
● Storage Temperature:
Storage: -20 to +60° C (Less than 1 month)
-20 to +45° C (Less than 3 month)
Storage: -20 to +60° C (Less than 1 month)
-20 to +45° C (Less than 3 month)
Note: In addition to conventional overcharge, over-discharge, and overcurrent protection, this BMS (Battery Management System) board features an enhanced temperature protection function. A temperature sensor is attached directly to the cell surface for real-time monitoring. Once the temperature reaches the preset safety threshold, the protection board will immediately cut off the load on the output side.
